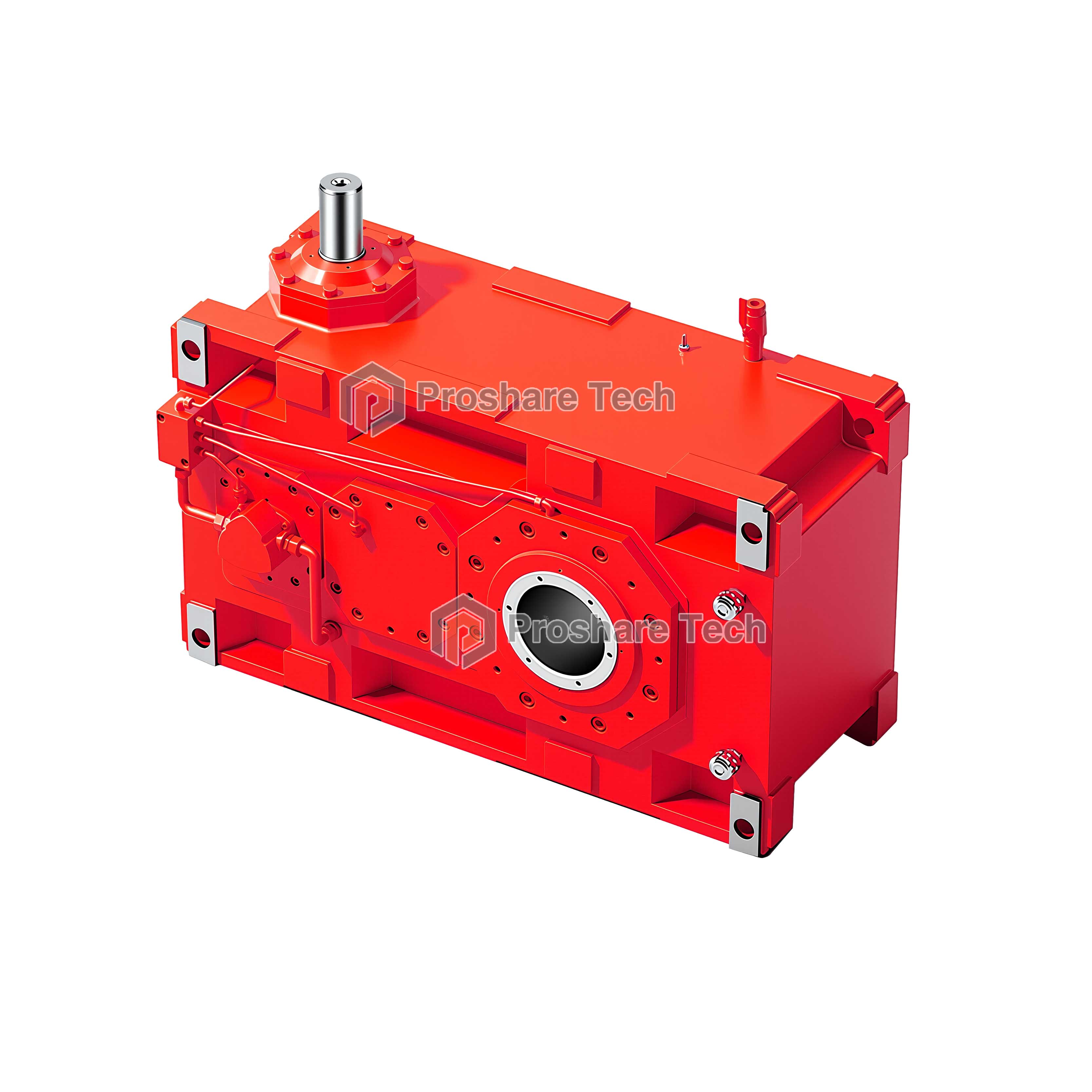

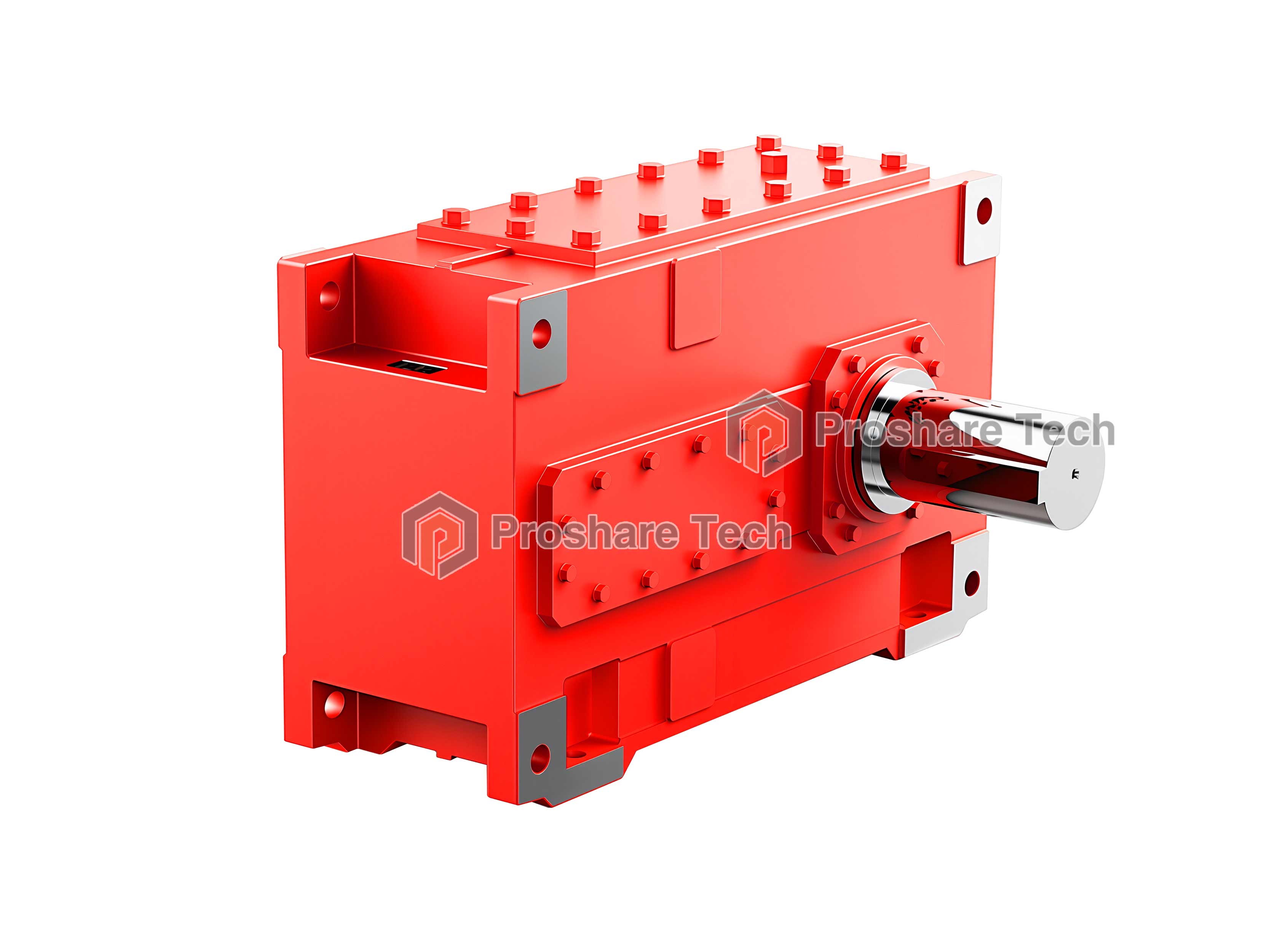

HB series gearbox adopts two structural forms: H parallel shaft gearbox and B right angle shaft gearbox, with 1-4 transmission levels. The types of parts are reduced while the number of specifications is increased. The helical gears and bevel gears are hardened, reshaped and ground to achieve a large tooth surface contact ratio. The box increases the surface area in a limited space, which not only has high transmission efficiency, but also has good heat dissipation performance. Improved operational stability.
The product is widely used in metallurgy, mining, cement, chemical industry, building materials, engineering machinery, lifting, port ships, belt transportation and other sub-sectors.
Product specifications: 03-26
Input type: solid shaft
Output type: foot mounting, flange mounting and hollow shaft mounting
Reduction ratio: 1.25 - 450
Rated output torque: 2300-470.000 Nm
Mounting: H- horizontal mounting M- horizontal mounting without foot V- vertical mounting
Options: fan cooling, cooling coil, heater, independent cooling system, backstop, non-contact seal, forced lubrication, temperature and oil level sensor
1. Compact structure, easy to use and install.
2. Accurate speed ratio, excellent transmission torque distribution curve, and multiple installation methods are available
3. High operating reliability, high-precision gears ensure that the gearbox can adapt to any harsh environment, quiet and vibration-free operation
