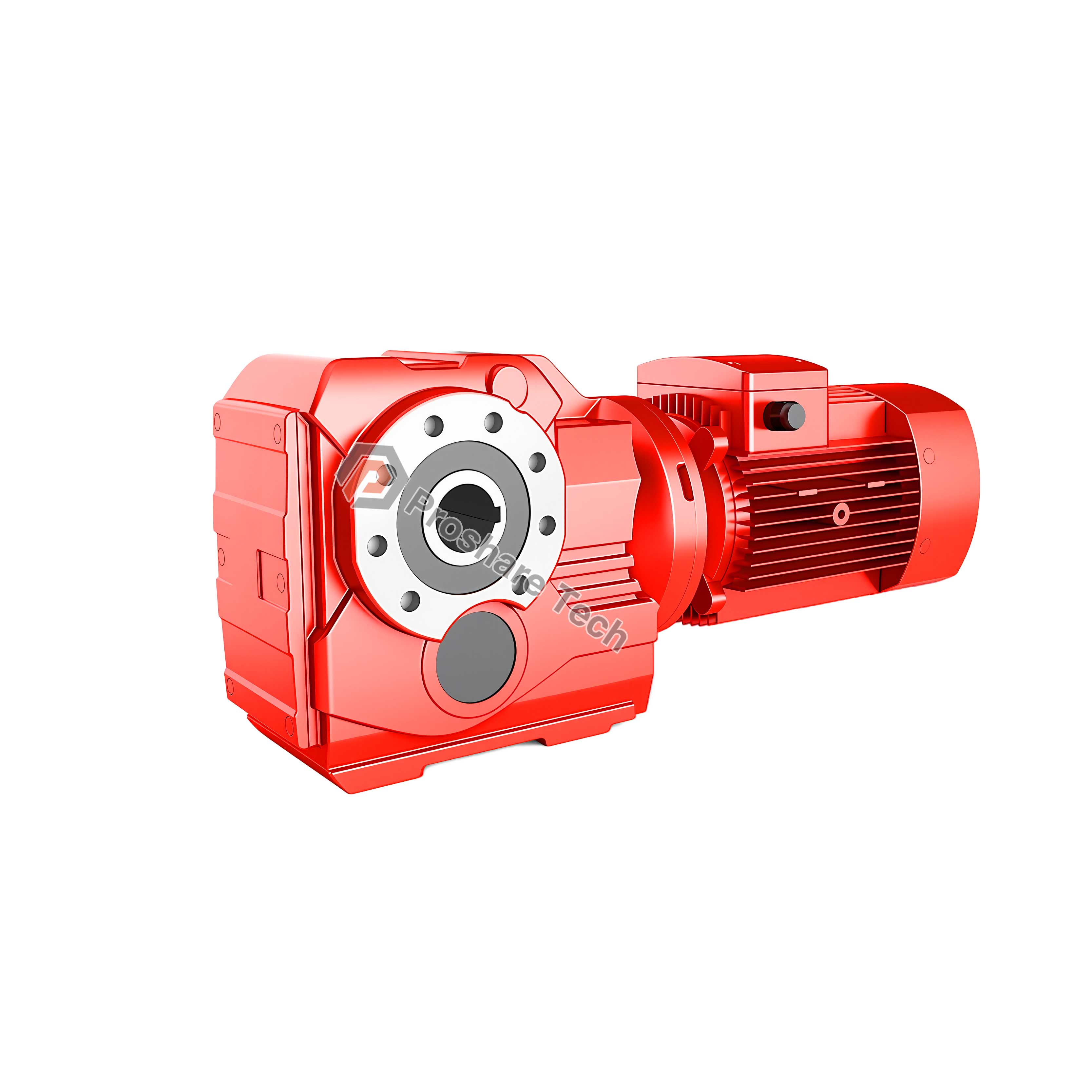

The K series helical bevel geared reducer uses two pairs of helical gears and one pair of bevel gears as the reduction transmission system, three-stage transmission, and the input and output are staggered in space.
The hardness of the gear after carburizing and quenching treatment is: HRC58~62, the depth of the hardened layer is 0.2-2mm, and the hardening is uniform.
It is widely used in petroleum, metallurgy, mining, lifting, transportation, cement, construction, chemical, textile, printing and dyeing, pharmaceutical, food, environmental protection and other industries.
Output torque: 200-50000 Nm
Output type: flange + solid shaft, foot + solid shaft, flange + hollow shaft, foot + hollow shaft, torque arm + hollow shaft
Motor power range: 0.12-200 Kw
Hollow shaft: single key/involute spline/locking disk
Output direction: A direction/B direction/A+B direction
Output speed: 0.1-522 r/min
Transmission efficiency: 85%-94%
1.Maximum use of the box space and occupying little space.
2.The integral casting box has good rigidity and is easy to improve the strength of the shaft and the life of the bearing.
3.The output torque is large and the permissible radial load is high.
4.Stable operation, low noise, long life
