F series parallel shaft helical geared reducer uses two or three pairs of helical gears as the reduction transmission system, with a hollow shaft output method, and has more output installation methods than the R series.
The gear is carburized and quenched to a hardness of HRC58~62, with a hardened layer depth of 0.2-2mm and uniform hardening.
It is widely used in petroleum, metallurgy, mining, lifting, transportation, cement, construction, chemical, textile, printing and dyeing, pharmaceutical, food, environmental protection and other industries.
Output torque: 200-18000 Nm

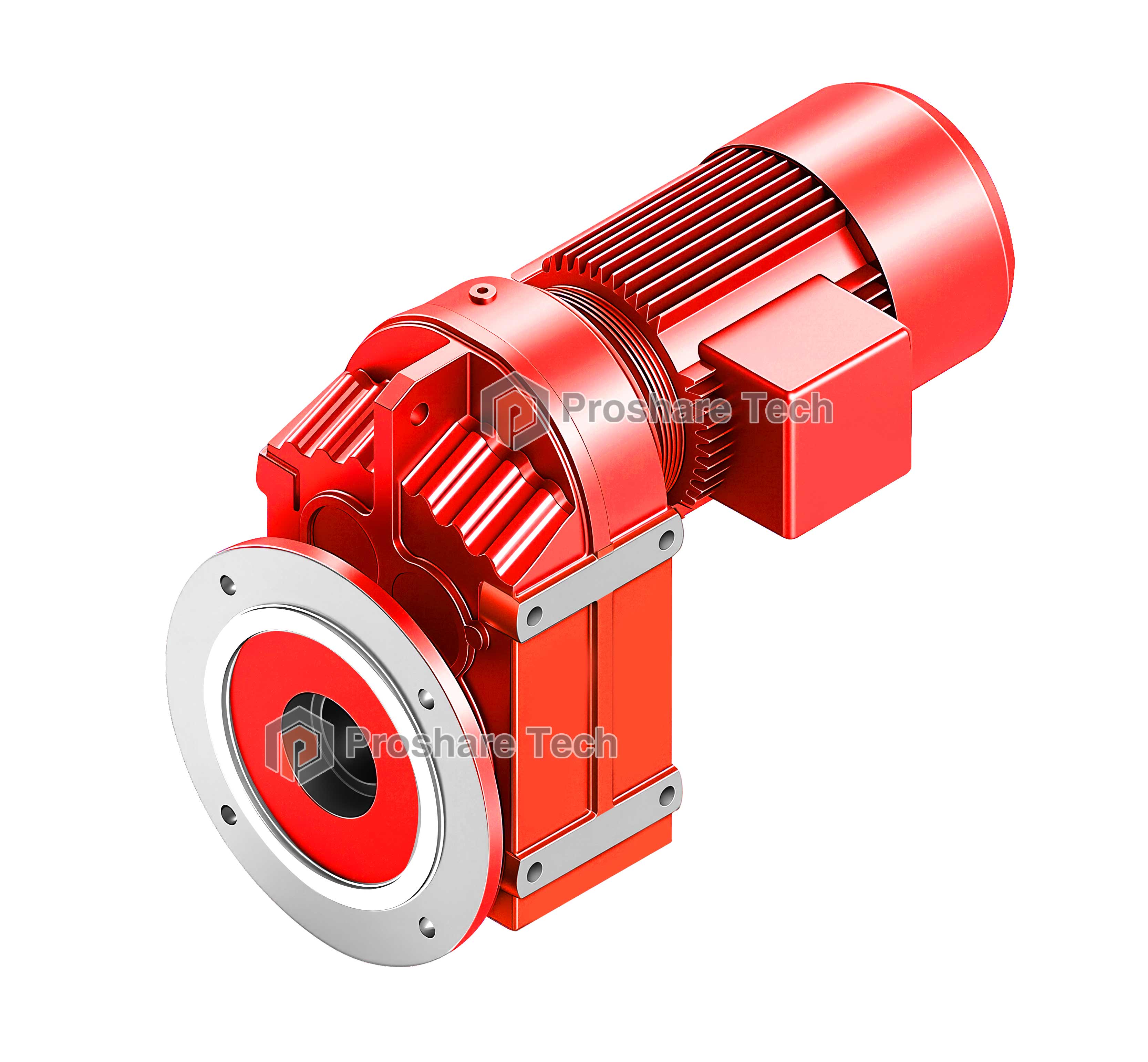

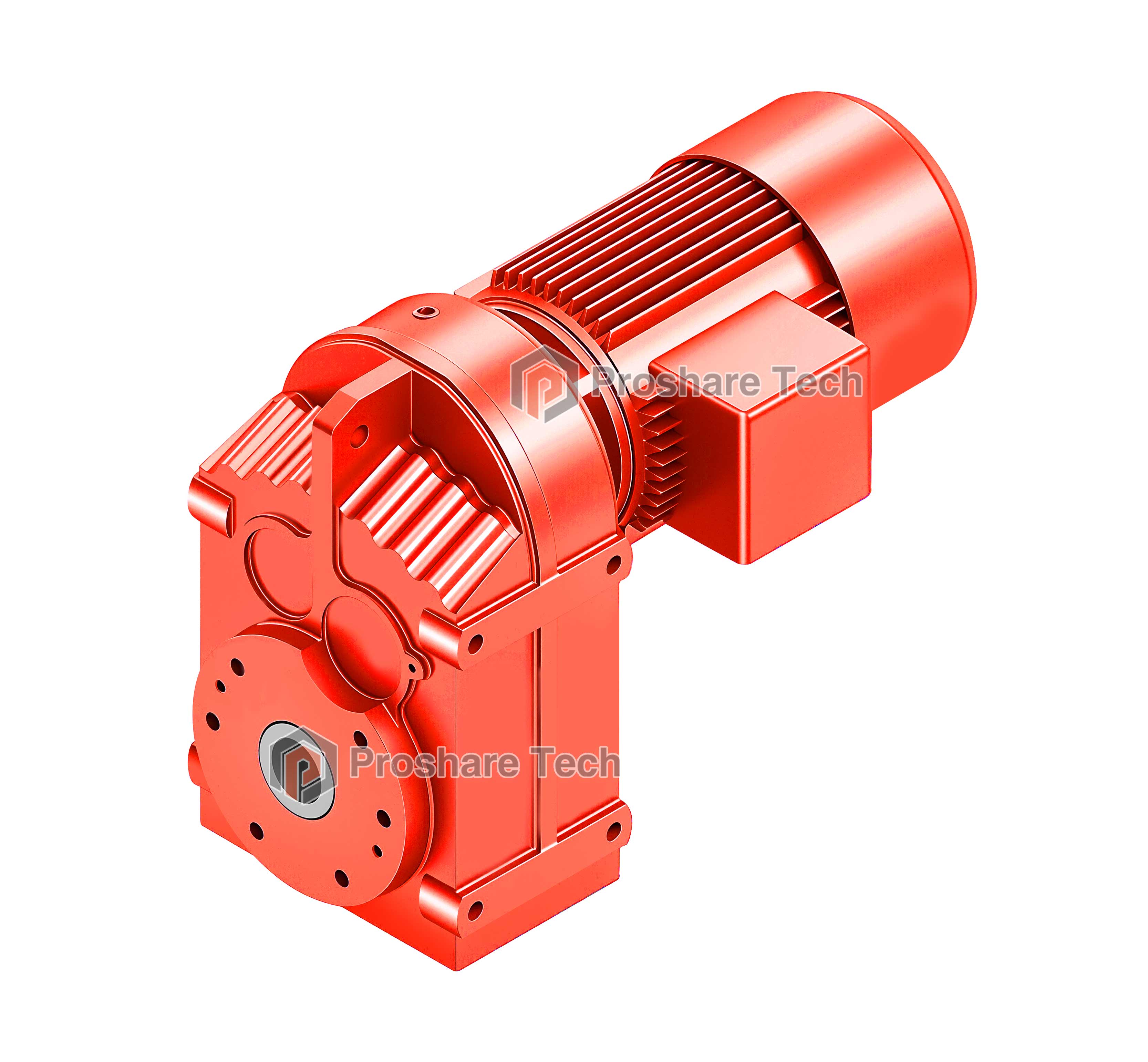

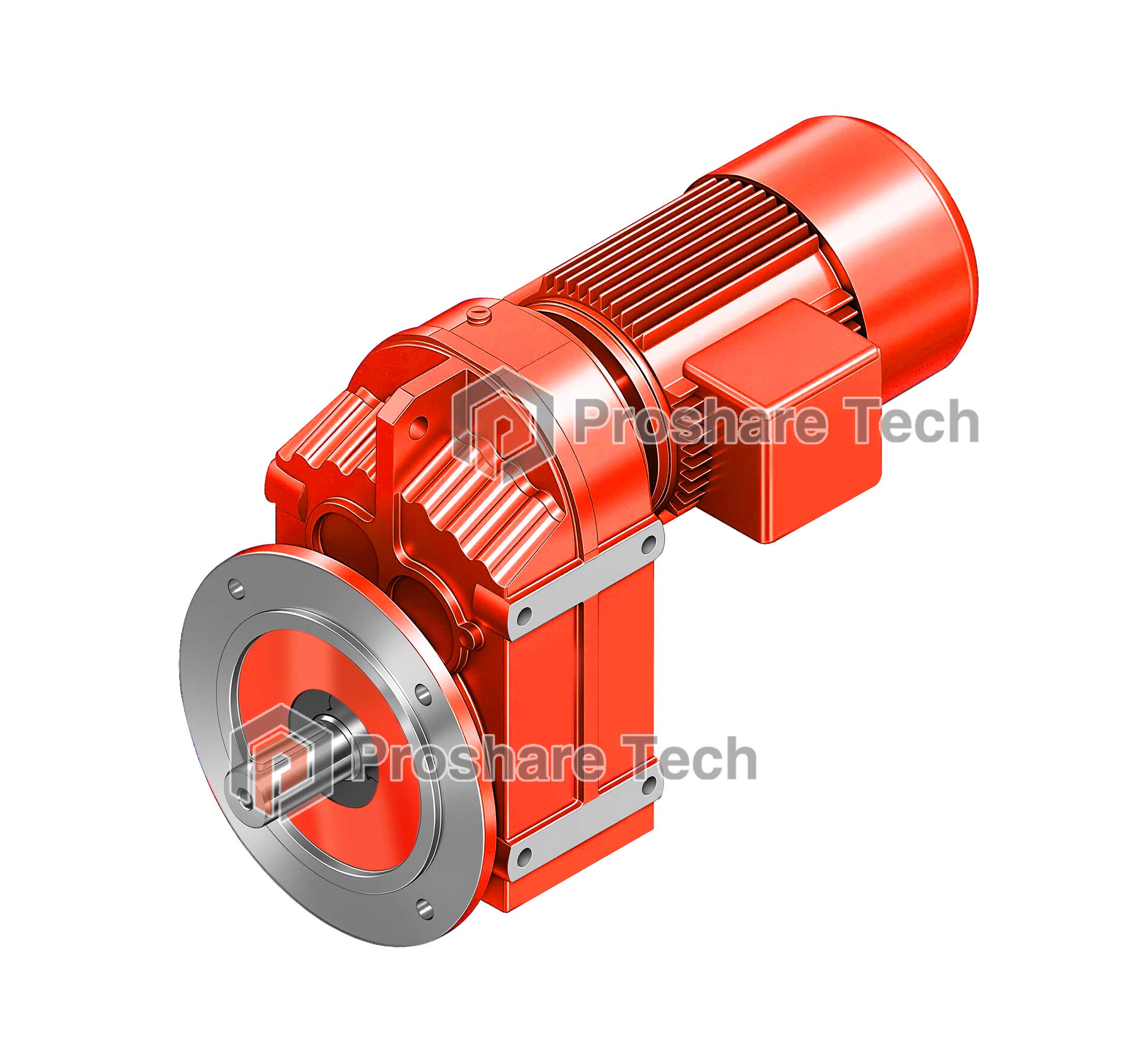

Output type: flange + solid shaft, foot + solid shaft, flange + hollow shaft, foot + hollow shaft, torque arm + hollow shaft
Motor power range: 0.12-200 Kw
Hollow shaft: single key/involute spline/locking disk
Output speed: 0.1-752 r/min
Transmission efficiency: 94%-98%
1.Simple and slim appearance
2.Parallel output, compact structure, large torque transmission
3.Stable operation, low noise, long life
4.Using an integral casting box, which is easy to improve the strength of the shaft and the life of the bearing.
5.The output torque is large and the permissible radial load is high.
