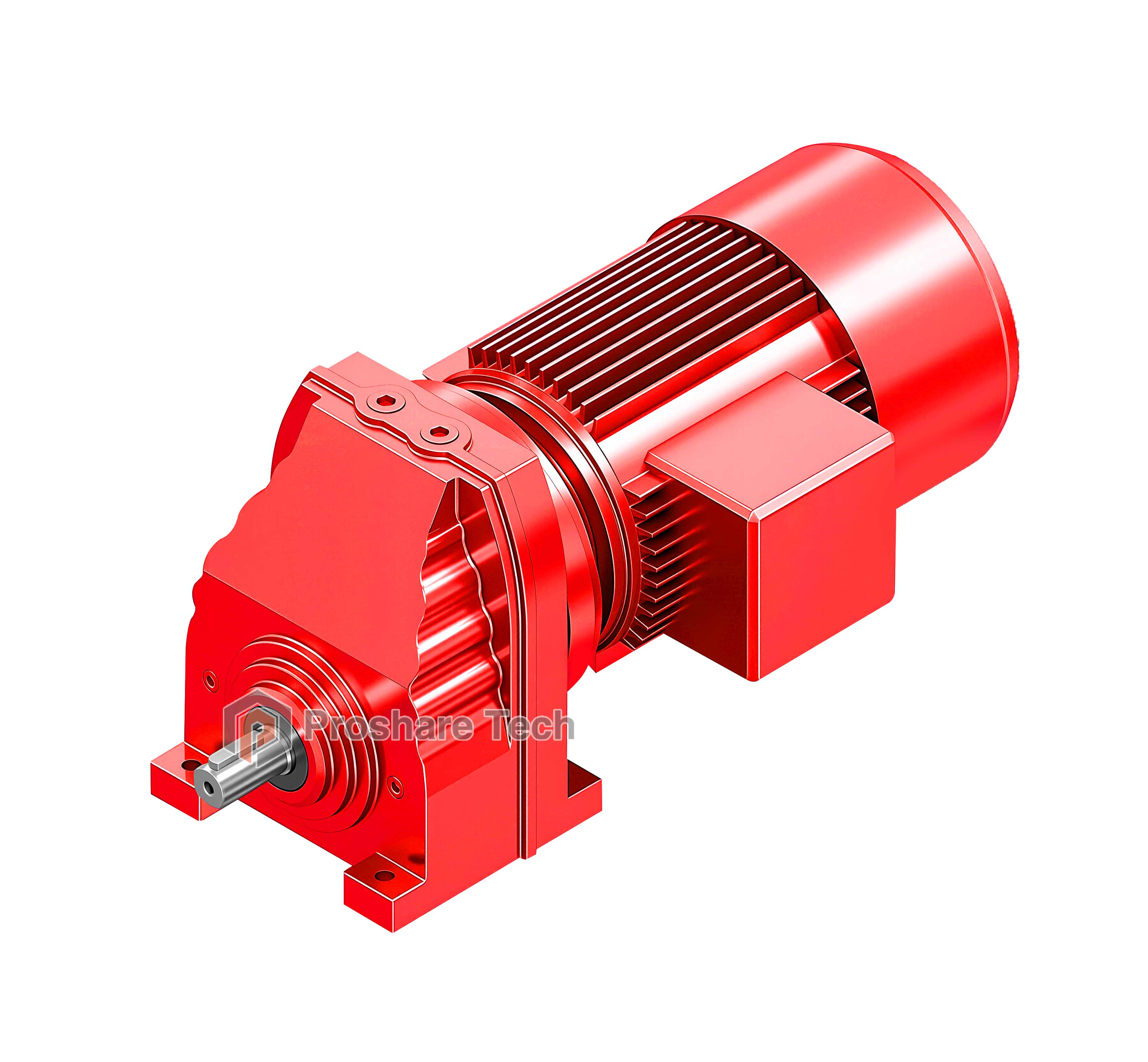

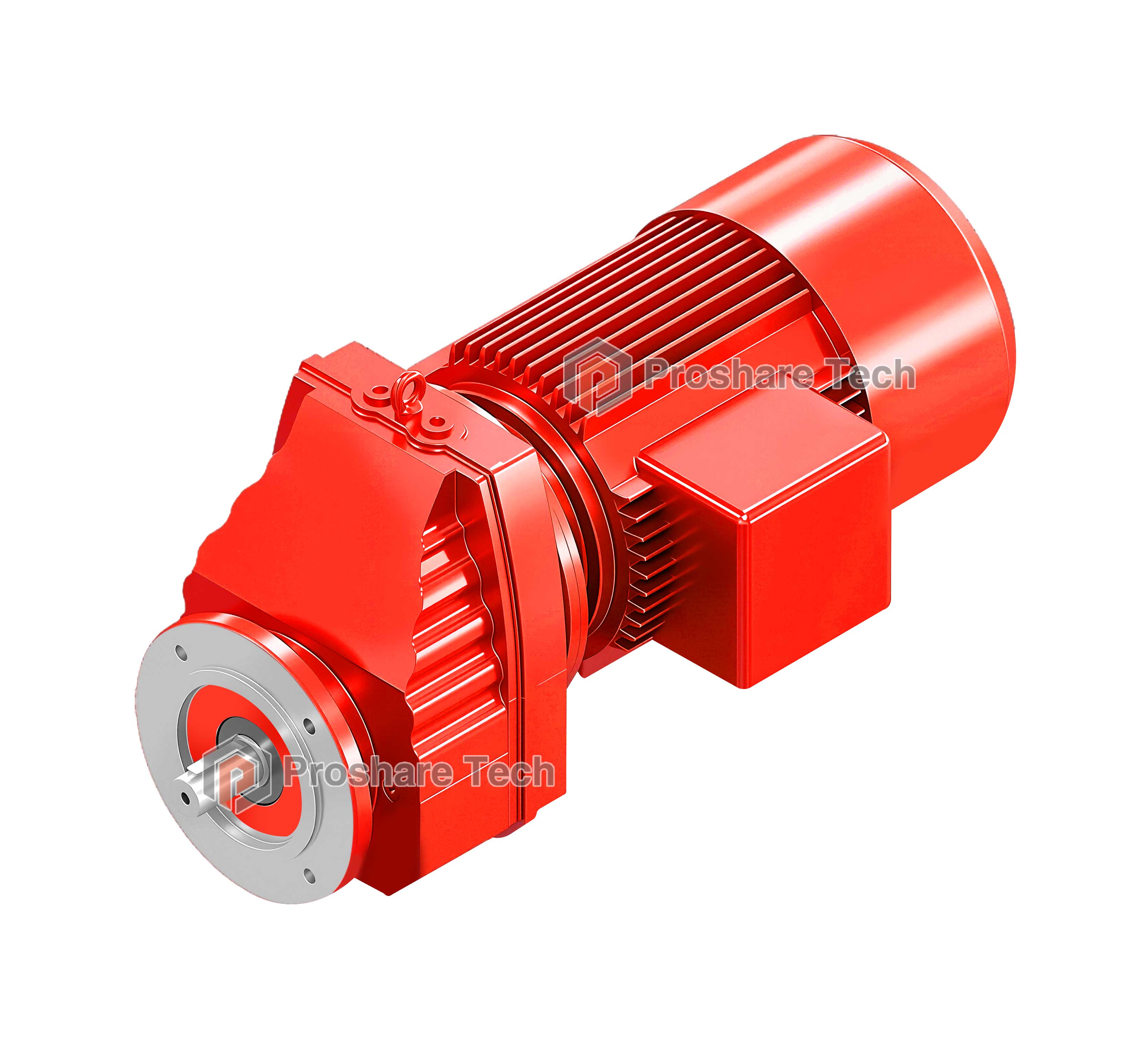

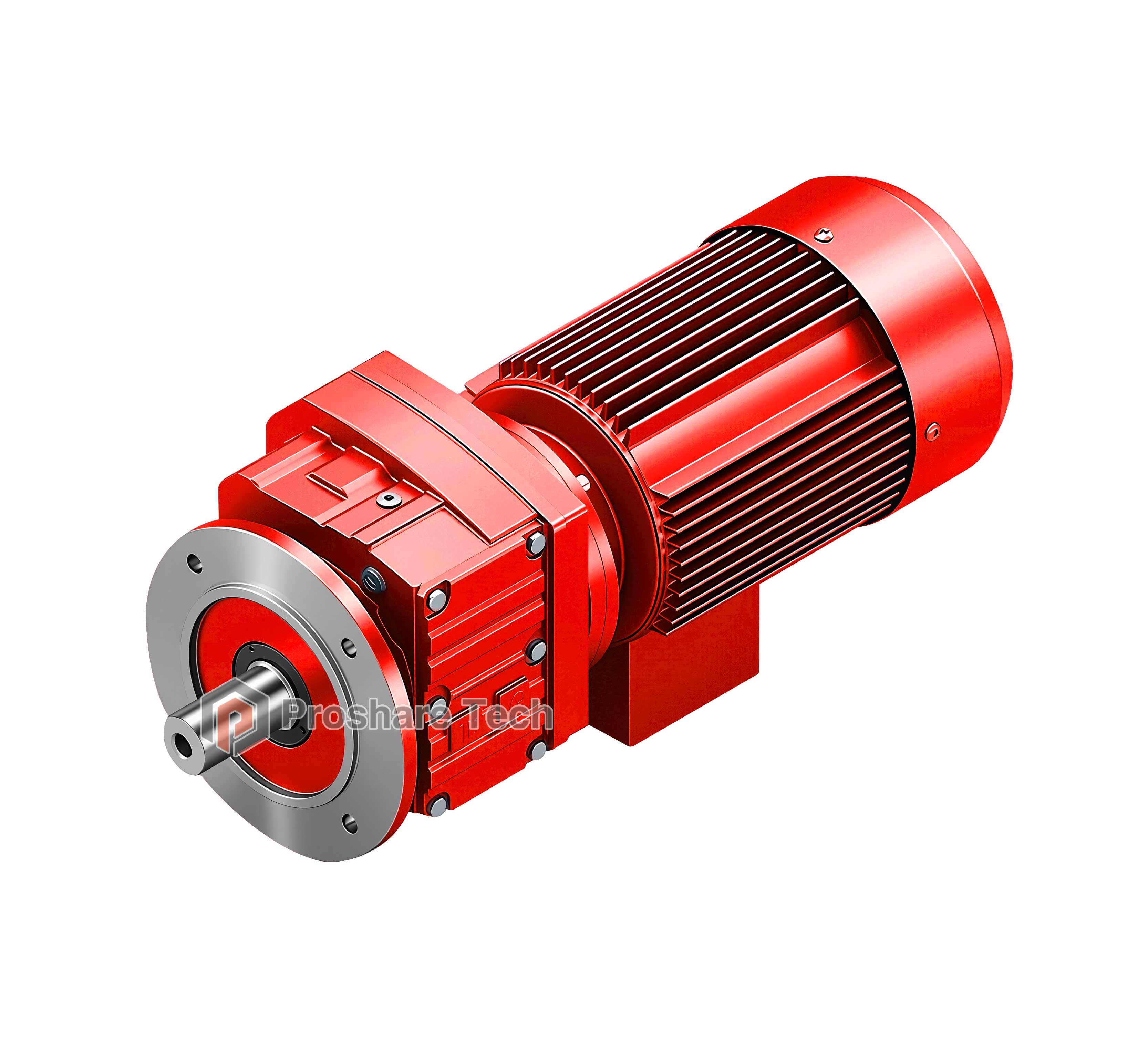

R series reducer uses one, two or three pairs of helical gears as the reduction transmission system. The gears are carburized and quenched to a hardness of HRC58~62, with a hardened layer depth of 0.2-2mm and uniform hardening. They are widely used in petroleum, metallurgy, mining, lifting, transportation, cement, construction, chemical industry, textile, printing and dyeing, pharmaceutical, food, environmental protection and other industries.
Input power: 85%~94%
Output torque: 200-50000 Nm
Output type: flange + solid shaft, foot + solid shaft, flange + hollow shaft, foot + hollow shaft, torque arm + hollow shaft
Motor power range: 0.12-200 Kw
Hollow shaft: single key/involute spline/locking disk
Output direction: A direction/B direction/A+B direction
1.Compact structure, maximize the use of box space
2.Integral casting box, easy to improve the strength of the shaft and bearing life
3.Large output torque, high permissible radial load
4.Can be used as the input stage of a multi-stage reduction gearbox
5.Unique lower noise technology in designing gear
6.Work long time in dreadful conditions
