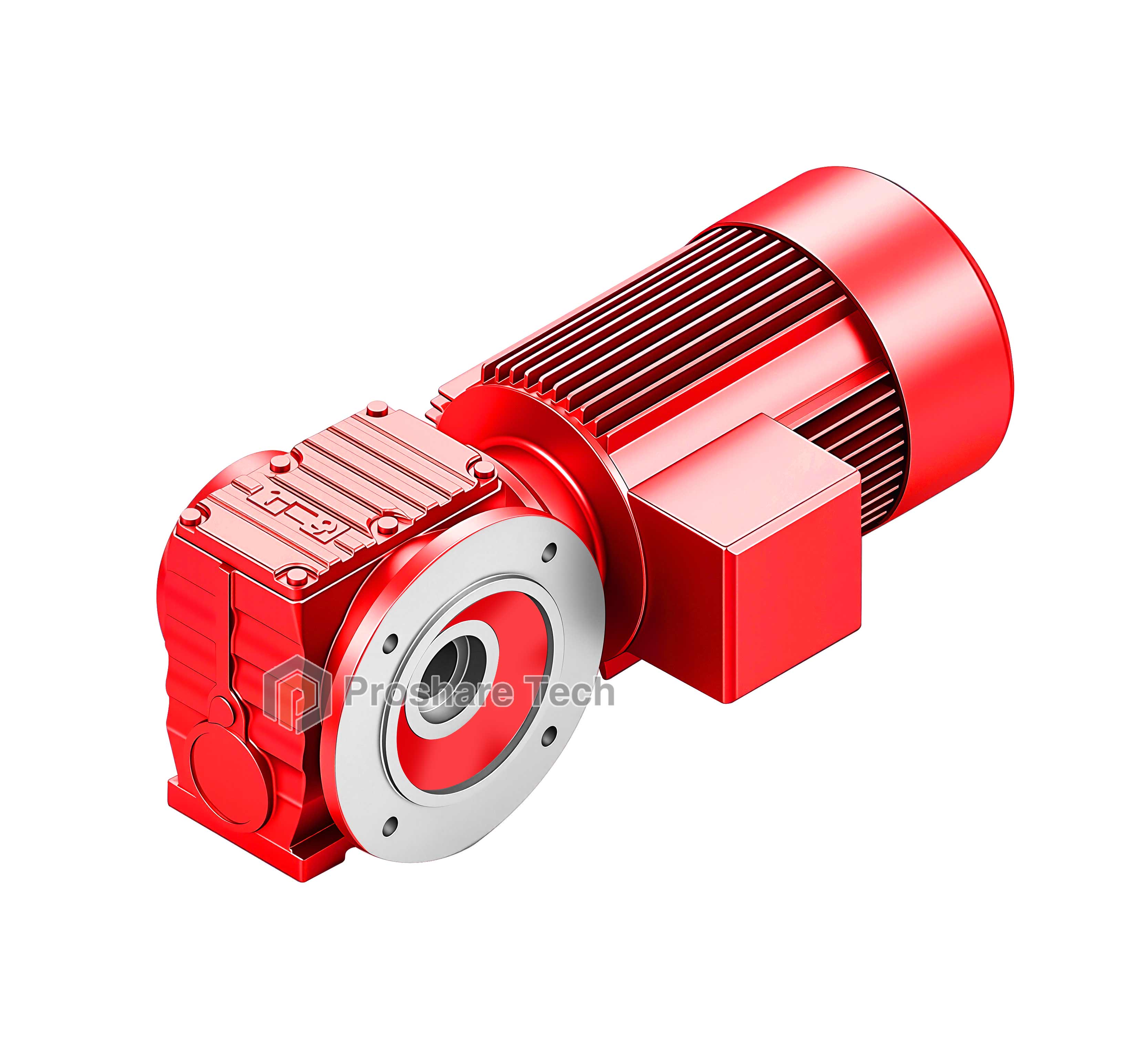

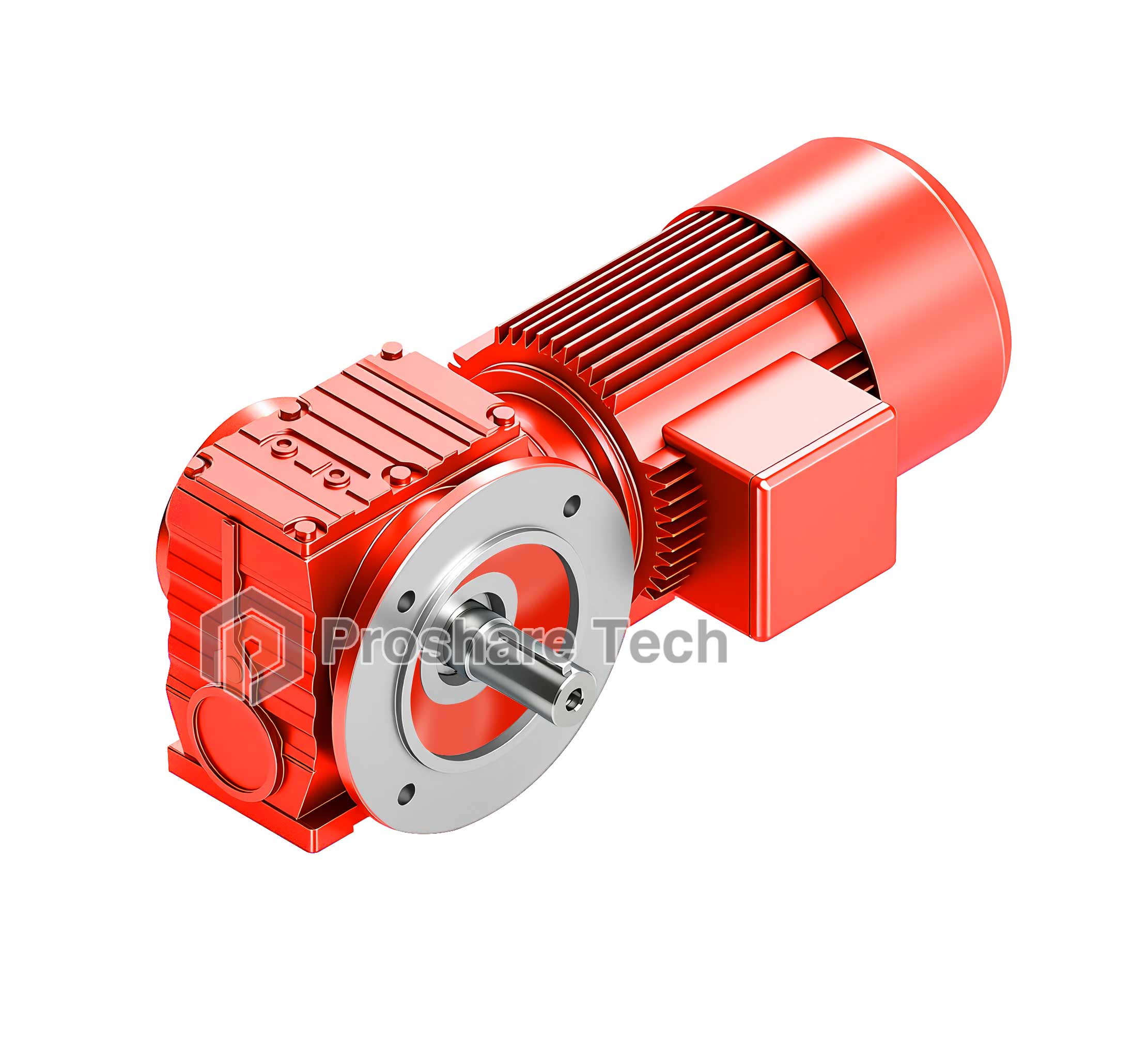

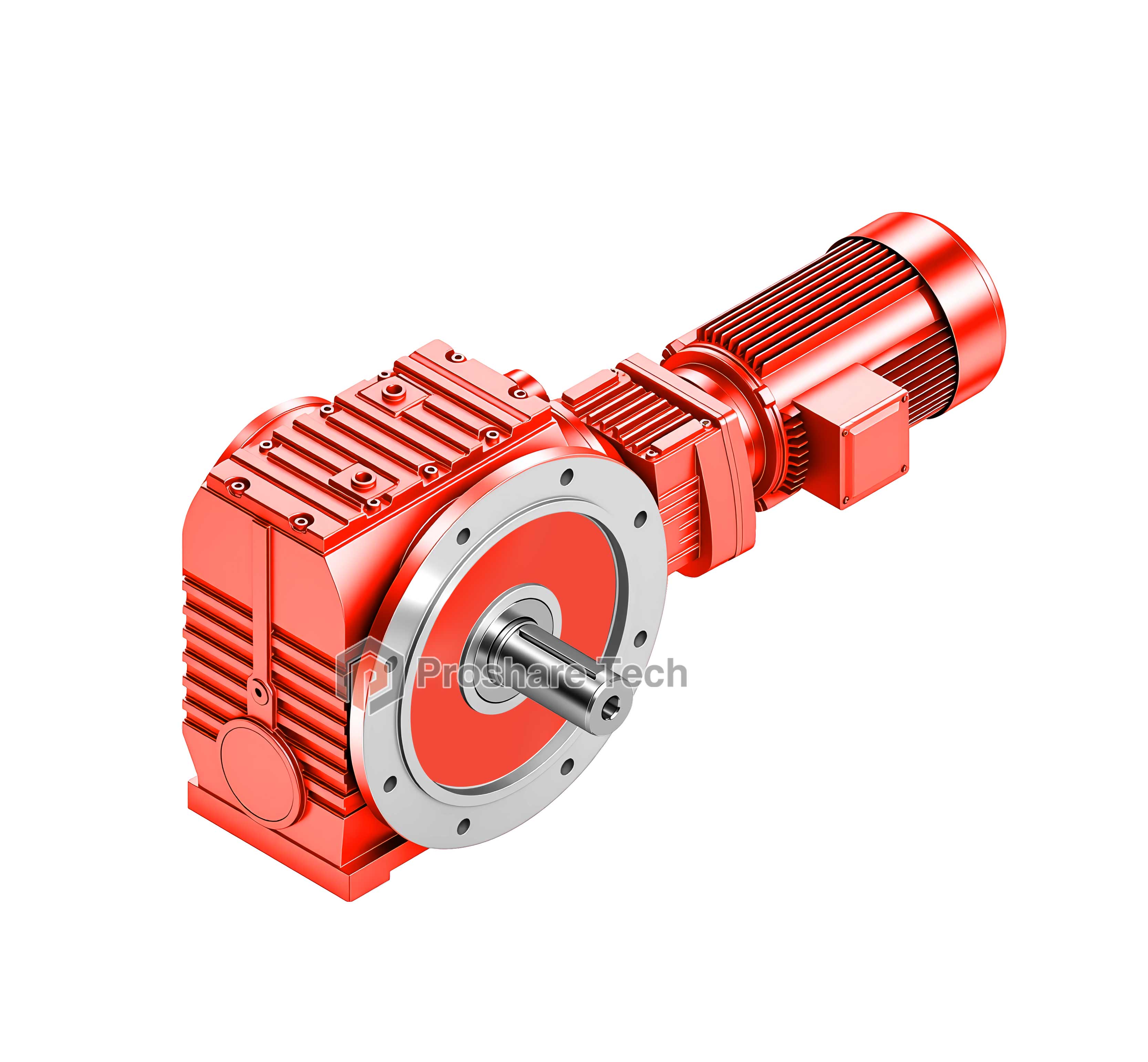

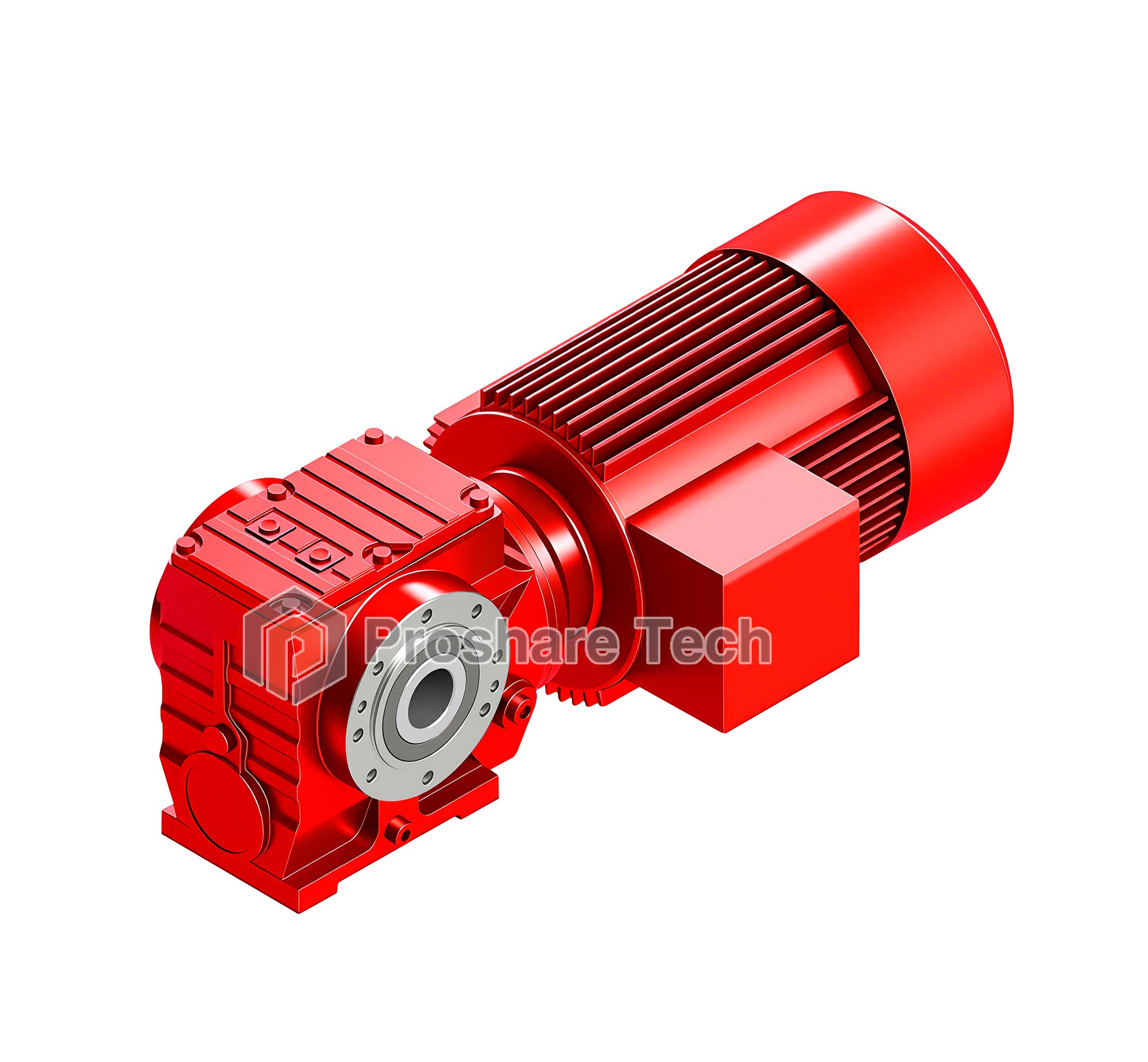

The S series helical worm geared reducer uses a worm gear and a pair of helical gears as the reduction transmission system, two-stage transmission, and the input and output are staggered in space.
The gear and worm are carburized and quenched to a hardness of HRC58~62, with a hardened layer depth of 0.2-2mm and uniform hardening. The worm gear material is ZCuSn12Ni2, using a centrifugal casting process.
Widely used in petroleum, metallurgy, mining, lifting, transportation, cement, construction, chemical, textile, printing and dyeing, pharmaceutical, food, environmental protection and other industries.
Output torque: 200-50000 Nm
Output type: flange + solid shaft, foot + solid shaft, flange + hollow shaft, foot + hollow shaft, torque arm + hollow shaft
Motor power range: 0.12-200 Kw
Hollow shaft: single key/involute spline/locking disk
Output direction: A direction/B direction/A+B direction
Output speed: 0.1-522 r/min
Transmission efficiency: 85%-94%
1.Input and output are interlaced in space, making maximum use of the box space.
2.The compact structure, hardened tooth surface transmits large torque.
3.High-precision gears ensure smooth operation, low noise and long life.
4.An integral casting box with good box structure rigidity, which is easy to improve the strength of the shaft and the life of the bearing.
